Adding LetsEncrypt Certificates (Deprecated)

A guide to adding lets encrypt certificates to truenas scale.

note

Truecharts released cert-manager & clusterissuer, a better cert management system alternative, heres the guide

Prerequisites:

  • This guide assumes you will be using Cloudflare.
  • Own a real domain(preferably CloudFlare)
    • If the domain is provided from another registrar, you can freely change the nameservers of your domain to CF and have it manage your domain.
    • for Cloudflare API Tokens, follow this guide.
  • Root/Admin user for scale should have an email setup prior to this task.
    • Edit the user in credentials -> local users and add an email.

Truenas Scale​

Go to Credentials -> Certificates page in Truenas Scale.

ACME DNS Authenticators​

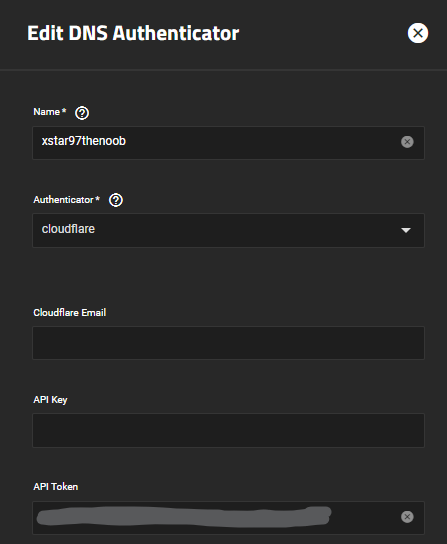

Add the api token that you created for your domain in ACME DNS-Authenticators.

scale-dns-auth

In my example I give this the same name as my root domain and add my token to API Token, all over sections can be ignored.

Certificate Signing Requests​

Add a CSR and give it a good name, I typically go with a name scheme like csr-rootdomain.

Skip step 2 by leaving it default.

In step 3 give exact details or fake it, upto you however the last section.

  • Common Name should be the the root domain.
  • Subject Alernate Names should either contain both root domain or wild card sub domain.
    • If you want to use both root domain and sub domain, just use both pictured below.
    • Otherwise the *.mydomain.tld would be sufficient of creating a universal cert for that domain.

csr-example

Skip step 4 as there's nothing to change.

Confirm and save.

note

Its normal for the CSR to display: Issuer: external - signature pending.

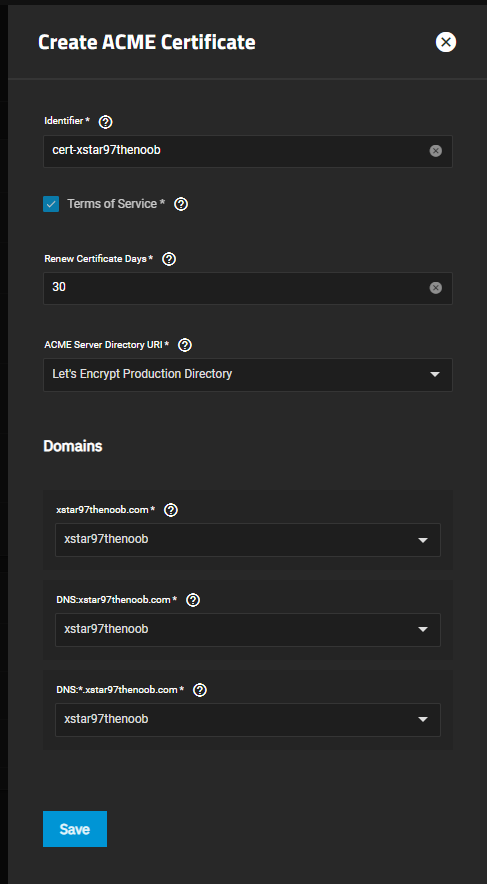

To create the cert click the wrench icon on the CSR you just made.

scale-csr-gen-cert

Give it a name like cert-rootdomain and check the Terms of Service.

By default the Renew Certificate Days is set at a min of 10 days, optionally change it to 30 days.

Set the ACME Server Directory URI* to Let's Encrypt Production Directory.

Finally add the ACME you created specifically for the domain.

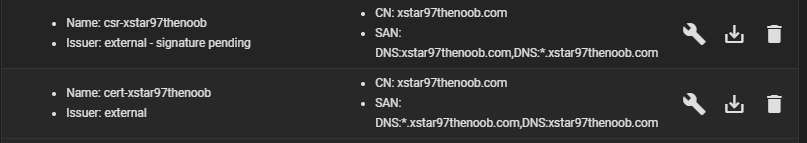

Once save it will take a min to process but if done correctly you should see a shiny cert :).

csr

How to Use Certs and Ingress​

  • traefik how to
  • Enable ingress on any app that has the option for ingress.

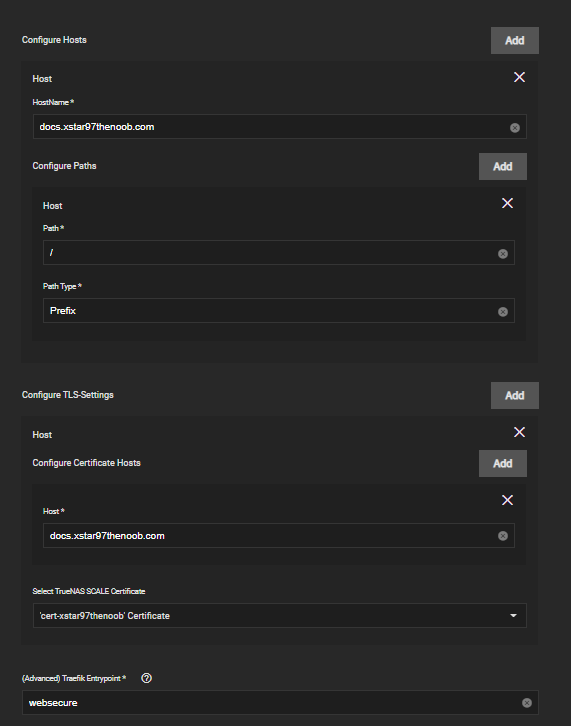

Here's an example:

host ingress
